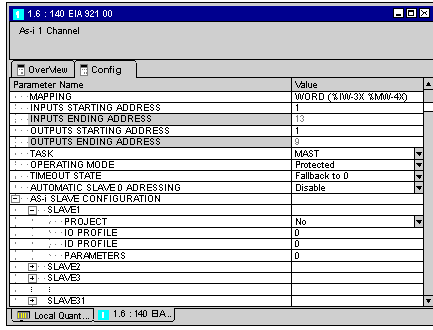

Parameter Configuration
|
|
|
Original instructions
|
|
Name
|
Default Value
|
Options
|
Description
|
|---|---|---|---|
|
MAPPING
|
WORD (%IW-3x
%MW-4X)
|
|
|
|
INPUTS STARTING ADDRESS
|
1
|
1-65522
|
Address area where the input information from the AS-i modules is mapped
|
|
INPUTS ENDING ADDRESS
|
13
|
|
|
|
OUTPUTS STARTING ADDRESS
|
1
|
1-65526
|
Address area where the output information to the AS-i modules is mapped
|
|
OUTPUTS ENDING ADDRESS
|
9
|
|
|
|
TASK
(Grayed if module in other than local)
|
MAST
|
FAST
AUX0
AUX1
AUX2
AUX3
|
Fixed to MAST if module in other than local
|
|
OPERATING MODE
|
Protected
|
Configuration
|
Configuration Mode: all slaves are activated, i.e. writing on outputs as well as reading from inputs is done directly.
Protected Mode: Only those slaves with a configuration on the AS-i bus which matches the reference configuration are activated.
|
|
TIMEOUT STATE
|
Fallback to 0
|
HOLD LAST VALUE
|
Determines the state of the I/O points in case of an communication error
|
|
AUTOMATIC SLAVE 0 ADDRESSING
|
Disable
|
Enable
|
When this function is enabled a faulty slave can be replaced by a slave of the same type without stopping the AS-i bus.
|
|
AS-i SLAVE CONFIGURATION
|
|||
|
AS-i SLAVE 1
|
|||
|
PROJECT
|
No
|
Yes
|
When "Yes", the configuration is downloaded to the slave and the slave is added to the list of configured slaves
|
|
IO PROFILE
|
0
|
|
Refer to indications of the slave manufacturer about slave profiles and capabilities.
|
|
ID PROFILE
|
0
|
|
|
|
PARAMETERS
|
0
|
|
|
|
AS-i SLAVE 2-31
|
see AS-i SLAVE 1
|
||
