Function
The Ethernet TCP/IP module for twisted pair cabling provides an interface to Ethernet networks for the Quantum Automation Series system.
Illustration

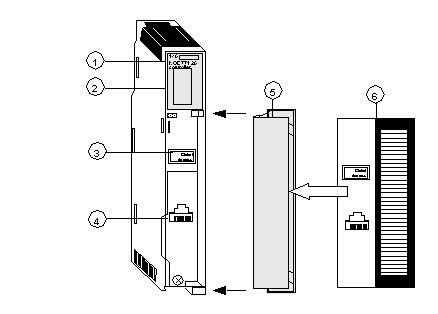

The following figure shows the Ethernet TCP/IP 140 NWM 100 00 module.
1
Model Number, Module Description, Color Code
2
LED Display
3
IP Address Writable Area
4
Global Address Label
5
100 Base Fx MT-RJ Cable Connector
6
10/100 Base-T RJ-45 Cable Connector
7
Removable door
