Presentation
Original instructions
About us
Function
The Ethernet TCP/IP module for twisted pair cabling provides an interface to Ethernet networks for the Quantum Automation Series system.
Illustration

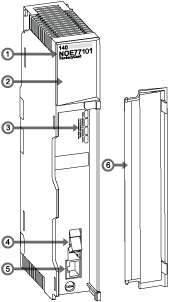

The following figure shows the Ethernet TCP/IP 140 NOE 771 01 module.
1
model number, module description, color code
2
LED display
3
global address label
4
MT-RJ fiber optic connector
5
RJ-45 connector
6
removable door
