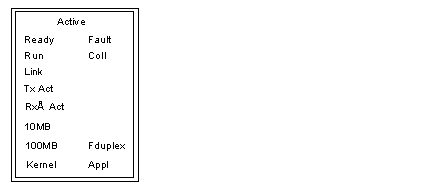

LED
|
Color
|
Description
|
|
Active
|
Green
|
Indicates the backplane is configured.
|
|
Ready
|
Green
|
Indicates module is healthy.
|
|
Fault
|
Red
|
Flashes when Ethernet collisions occur.
|
|
Run
|
Green
|
Flashes to indicate diagnostic code, as described in "Run LED Status" (below).
|
|
Coll.
|
Red
|
Flashes when Ethernet collisions occur.
|
|
Link
|
Green
|
On when Ethernet link is active.
|
|
Tx Act
|
Green
|
Flashes to indicate Ethernet transmission.
|
|
Rx Act
|
Green
|
Flashes to indicate Ethernet reception.
|
|
Kernel
|
Amber
|
On when in Kernel Mode.
|
|
10MB
|
Green
|
On when the module is connected to a 10 Megabit network.
|
|
100MB
|
Green
|
|
|
Fduplex
|
On when Ethernet is operating in the full duplex mode.
|
|
|
Appl
|
Green
|
On when crash log entry exists.
|
|
Indicator State
|
Status
|
|---|---|
|
On (steady)
|
Normal operation: The NOE module is ready for network communication.
|
|
Number of flashes in sequence
|
|
|
one
|
Not used
|
|
two
|
Not used
|
|
three
|
No Link: the network cable is not connected or is defective
|
|
four
|
Duplicate IP address: The module will stay off-line.
|
|
five
|
No IP address: The module is attempting to obtain an IP address from a BOOTP server.
|
|
six
|
Using default IP address
|
|
seven
|
No valid executive NOE present
|
