Presentation

Function

The Quantum SY/MAX Ethernet module for fiber optic cabling provides an interface for the Quantum Automation Series system to SY/MAX devices via Ethernet.

Illustration

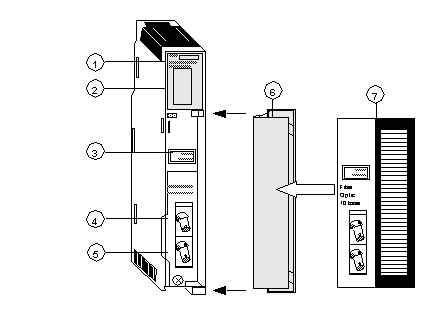

The following figure shows the NOE 351 00 SY/MAX Ethernet module.

Model Number, Module Description, Color Code

LED Display

Global Address Label

Transmit Cable Connector

Receive Cable Connector

Removable door

Customer Identification Label, (Fold label and place it inside door)

SY/MAX Addressing

Be sure that the module is assigned a unique SY/MAX drop number during configuration.

WARNING

UNEXPECTED APPLICATION BEHAVIOR

Do assign a unique SY/MAX drop number during configuration.

Failure to follow these instructions can result in death, serious injury, or equipment damage.
