Presentation
Original instructions
Function
The Quantum SY/MAX Ethernet module for twisted pair cabling provides an interface for the Quantum Automation Series system to SY/MAX devices via Ethernet.
Illustration

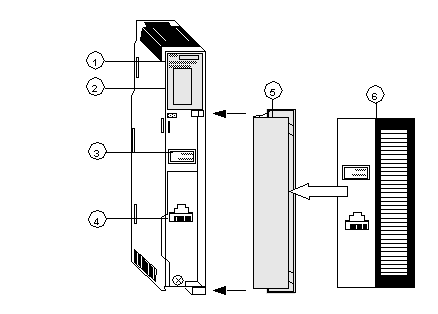

The following figure shows the NOE 311 00 SY/MAX Ethernet module.
1
Model Number, Module Description, Color Code
2
LED Display
3
Global Address Label
4
RJ-45 Connector
5
Removable door
6
Customer Identification Label, (Fold label and place it inside door)
SY/MAX Addressing
Be sure that the module is assigned a unique SY/MAX drop number during configuration.
WARNING
UNEXPECTED APPLICATION BEHAVIOR
Do assign a unique SY/MAX drop number during configuration.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
