Presentation

Function

The Ethernet TCP/IP module for twisted pair cabling provides an interface to Ethernet networks for the Quantum Automation Series system.

Illustration

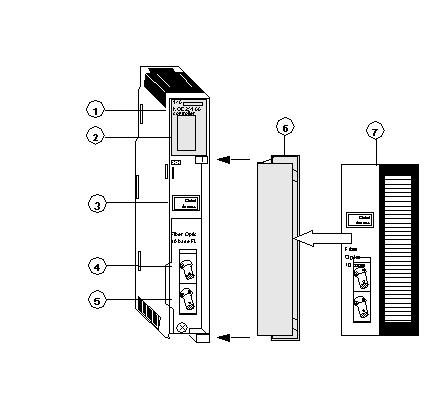

The following figure shows the Ethernet TCP/IP NOE 211 x0 module.

Model Number, Module Description, Color Code

LED Display

Global Address Label

Transmit Cable Connector

Receive Cable Connector

Removable door

Customer Identification Label, (Fold label and place it inside door)
