Configuration Screen for the BMX MSP 0200 PTO Module
Original instructions
About us
At a Glance
This section presents the configuration screen for BMX MSP 0200 PTO Module
Illustration

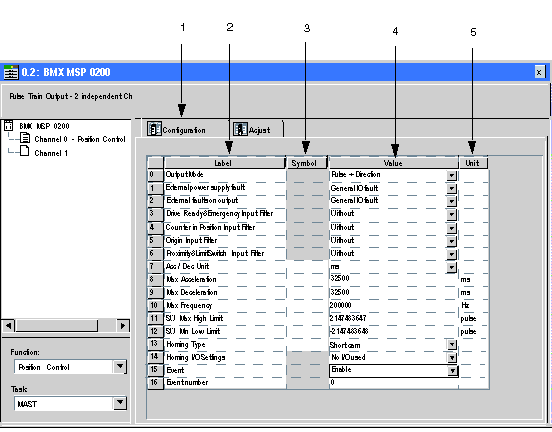

The figure below presents the configuration screen of the BMX MSP 0200 PTO Module in pulse train output mode :
Description of the Screen
The following table presents the various parts of the above screen:
Number
Element
Function
1
Tab
The tab in the foreground indicates the current mode. The current mode is therefore the configuration mode in this example.
2
Label field
This field contains the name of each variable that may be configured. This field may not be modified.
3
Symbol field
This field contains the address of the variable in the application. This field may not be modified.
4
Value field
This field contains a drop-down menu containing all the possible values and the user may then select or directly write the required value of the variable.
5
Unit field
This field contains the unit of each variable that may be configured. This field may not be modified.
NOTE: Refer to the desired function in order to properly configure the BMX MSP 0200 PTO module
