Using Data via the Animation Tables

At a Glance

The animation table is the Control Expert’ basic tool for viewing and forcing the status of variables.

NOTE: Control Expert also offers a graphic tool called Operator Screens which is designed to facilitate use of the application.

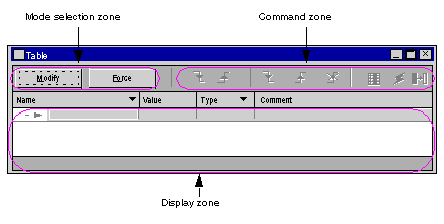

An animation table is divided into 3 areas that include:

Animation table:

Creating an Animation Table

The table below presents the procedure for creating an animation table:

Step	Action
1	Right-click on the Animation Tables directory in the project browser. Result: the contextual menu is displayed.
2	Select New Animation Table. Result: a table properties window is displayed.
3	Click on OK to create the table, which is given a default name. Result: the animation table is displayed.

Adding Data to the Animation Table

The table below presents the procedure for creating data to view or force in the animation table:

Step	Action
1	In the Table window, click on the empty line in the Name column.
2	There are two possible ways of adding data: Enter the variable name directly Click on the icon to display the instance selection window in order to select the variable

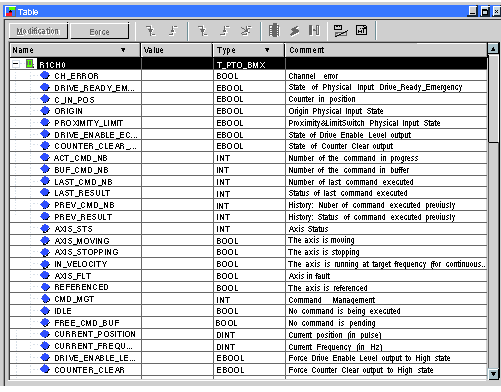

3	Enter or select the R1CH0 variable and expand it. Result: the animation table looks like this.
