The application described is a packet conveyor manager: a machine that contains a product transport conveyor and a digital jack system which will place each product in a free cell. Once a product is detected to sort in a cell, the application starts.
This system has 2 orthogonal linear axes equipped with drives:
The application example deals with the Jack’s movement once a product is detected.

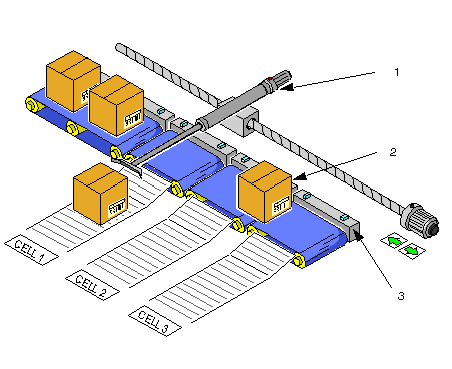

Packet conveyor managemer
1
Digital Jack
2
Conveyor with products transported
3
Presence Sensor
When the product is detected, there is a 4-step sequence which starts:
-
The jack moves forward to pushing position, this is a high-speed aproach phase.
-
The product is pushed out of the belt at lower velocity.
-
After pushing the item, there is a 500 ms break before moving the jack again.
-
After waiting, the jack goes back into its original position.

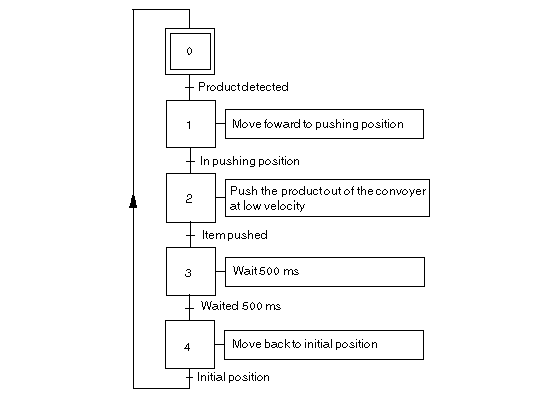

The sequence can be represented by the following diagram.

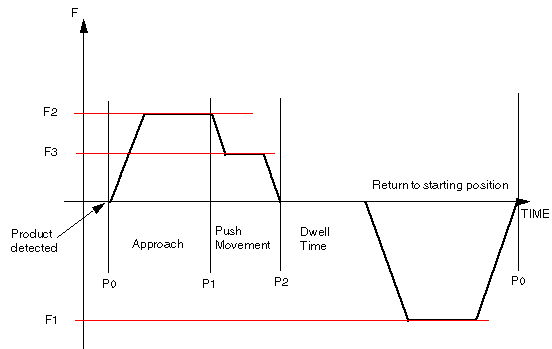

The jack’s speed will be like the following diagram:
