MMF_JOG: JOG

Function Description

Jogs an axis using MMFStart Immediate Continuous Move and Halt.

Additional parameters and may be configured.

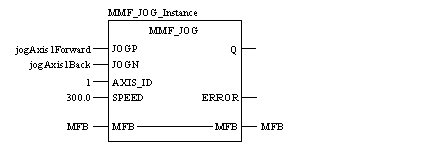

FBD Representation

Representation:

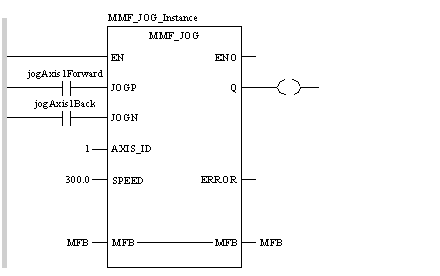

LD Representation

Representation:

IL Representation

CAL MMF_JOG_Instance (JOGP:=jogAxis1Forward,
    JOGN:=jogAxis1Back, AXIS_ID:=1, SPEED:=300.0,
    MFB:=MFB)

ST Representation

MMF_JOG_Instance (JOGP:=jogAxis1Forward,
    JOGN:=jogAxis1Back, AXIS_ID:=1, SPEED:=300.0,
    MFB:=MFB) ;

Parameter Description

Description of input parameters.

Parameter	Date Type	Meaning
JOGP	BOOL	Rising input starts positive motion; falling input halts motion.
JOGN	BOOL	Rising input starts negative motion; falling input halts motion.
AXIS_ID	INT	Single Axis ID to jog.
SPEED	REAL	Constant jog speed.

Description of in-output parameters.

Parameter	Data Type	Meaning
MFB	MMFBlock	Must be connected to the MMFStart block of 200 registers (usually named MFB).

Description of output parameters.

Parameter	Data Type	Meaning
Q	BOOL	True when jog is issued; reset after issuing a halt.
ERROR	INT	First error code that is generated upon attempting to move or halt.

Example

jogAxis1Forward is mapped to a button on the operator's panel. When the input is on, as shown, the motor will move in the positive direction at a velocity of 300. This could be RPMs or inches per minute, and so on. When the button is released the axis will halt.

Runtime Errors

For a list of all error codes and values of the block, refer to Tables of Error Codes for the Motion Library.

EN stands for ENable; it is an optional block input. When the EN input is enabled, an ENO output is set automatically.

If EN = 0, the block is not enabled; its internal program is not executed, and ENO is set to 0.

If EN = 1, the block's internal program is run and ENO is set to 1. If an error occurs, ENO is set to 0.

If the EN input is not connected, it is set automatically to 1.

ENO

ENO stands for Error NOtification; this is the output associated with the optional input EN.

If ENO is set to 0 (because EN = 0 or in case of an execution error):

the status of the function block outputs remains the same as it was during the previous scanning cycle that executed correctly;
the output(s) of the function, as well as the procedures, are set to "0".
