Logic diagrams of faults
(Original Document)
About us
Fault Generation

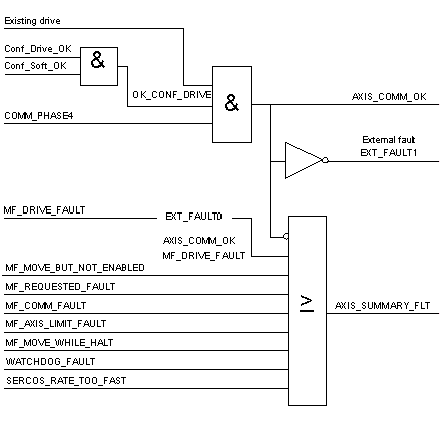

The following logic diagram illustrates the generation of AXIS_SUMMARY_FLT and external faults:
Activation of LEDs

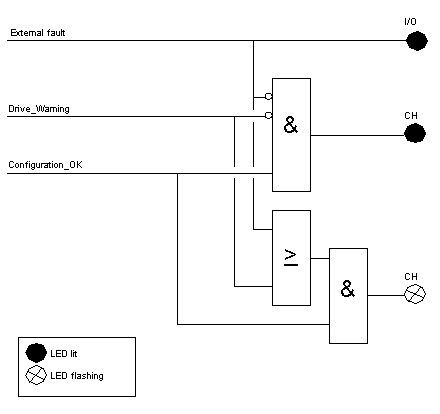

The following logic diagram illustrates the activation of the I/O and CH LEDs:
