Signal labeling
(Original Document)
About us
Diagram of the principle

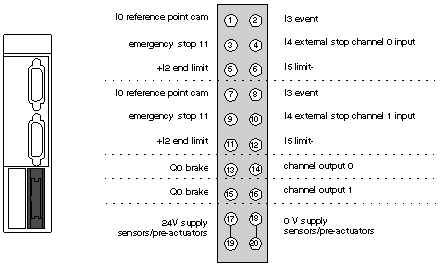

This diagram illustrates the principles for labeling signals:
The 0 V of sensors/pre-actuators is connected in the module to the protective ground by an R/C network with the value: R = 100MΩ / C = 4.7 nF.
