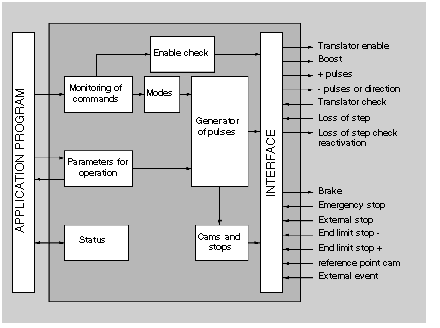

Summary of step-by-step axis command module:
Features of TSX CFY 11/21 step-by-step axis command modules
Each axis of TSX CFM 11/21 axis command modules has:
-
inputs
-
a translator check input,
-
an control input for loss of step,
-
a + end limit input,
-
a - end limit input,
-
a reference point cam input,
-
an event input,
-
an emergency stop input,
-
an external stop input,
-
outputs
-
brake output,
-
pulse+ output,
-
pulse - output or direction,
-
loss of step control reactivation output,
-
boost output,
-
translator enable output.
