Synopsis of the module functions

(Original Document)

General overview

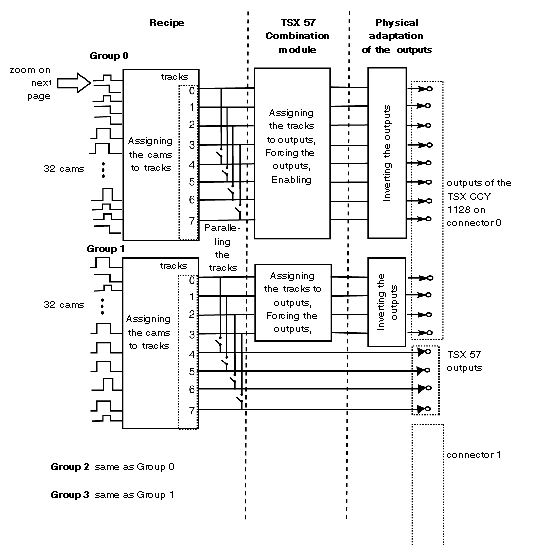

This synopsis describes a general overview of the functions of the module:

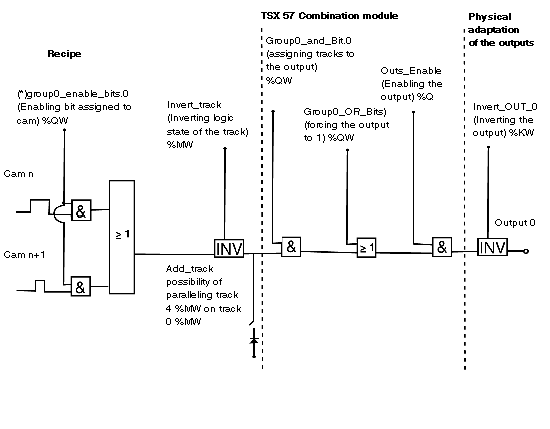

Detail for output 0 and 0 of group 0

This synopsis describes the zoom from the previous page:

NOTE: The assigned to one track cannot be assigned to another track.

(*) There are two other possibilities:

Cam

Logic state which switches to 1 when an angular value in the cycle is overshot and which resets to 0 according to the type of cam.

A cam is systematically associated to one and only one track. Several cams can be associated to one track.
