The system checks that a module really is in good working order and is capable of performing the designated function.
-
The module tests its main components.
-
Checks correct operation of the internal self-tests performed on cold or warm restart of the internal software.
-
Checks communication between the module and the processing unit.
-
Checks supply and connection of the .
-
Checks auxiliary inputs supply.
-
Checks outputs.
Display on module front panel

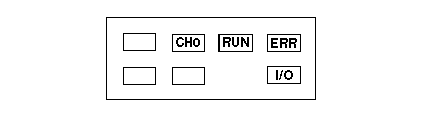

The display on the module front panel shows the module operating status. The information is laid out in the following arrangement:
On power-up, if CH0 and RUN light up green, the module has not detected any errors and is ready to operate.
The CH0 light is lit (green)
The RUN light is lit (green)
