Restoring the recipe adjustment parameters

(Original Document)

Procedure

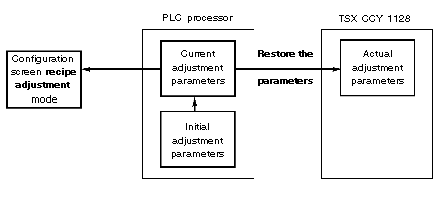

The Services/Restore parameters command replaces the current parameters with the initial values.

This operation causes the to stop.

NOTE:

The RESTORE_PARAM %CHXY.0 instruction enables the application to perform this restoration operation.
This operation is also performed automatically on a cold restart.

Cam processor

This is the part of the module that directly controls the outputs according to the angle reading and according to the cam program supplied with the module.
