Reconfiguration in connected mode

Procedure

When all the parameters are modified, confirm these parameters using the Edit/Confirm command or click on the confirmation icon.

Only the parameters that are not grayed out can be modified in connected, the other parameters, (task, event, masking faults, and encoder configuration) must be modified in local mode.

Any reconfiguration in connected mode causes the cam processor to stop its operations.

Illustration

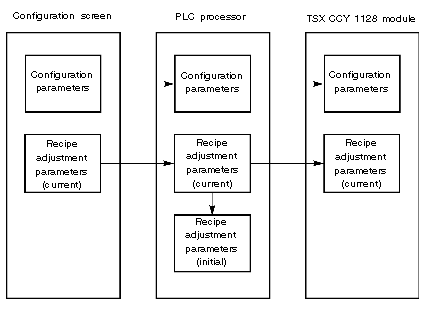

The following diagram describes the reconfiguration process.

Configuration

The configuration gathers together the data which characterizes the machine (invariant) and which is necessary for the TSX CCY 1128 module to operate.

All this information is stored in the PLC %KW constants zone. The PLC application cannot modify them.

Encoder

Position sensor accepted by the module It can be incremental, SSI absolute or parallel (via Telefast ABE 7CPA11).
