Wiring rules and precautions specific to the TELEFAST
(Original Document)
About us
Connecting or disconnecting the TELEFAST
You should always connect or disconnect the TELEFAST’s connectors and various connection wires when the voltage is SWITCHED OFF:
Length of the connection cable between the module and the TELEFAST
The table below gives the clock frequency of the transmission series according to the distance.
If
then
cable length < to 10 meters
frequency of the transmission series clock: 1 MHz
cable length < to 20 meters
frequency of the transmission series clock: 750 kHz
cable length < to 50 meters
frequency of the transmission series clock: 500 kHz
cable length < to 100 meters
frequency of the transmission series clock: 375 kHz
cable length < to 150 meters
frequency of the transmission series clock: 200 kHz
cable length < to 200 meters
frequency of the transmission series clock: 150 kHz
Cross-section of the wire connecting the module and the TELEFAST
In order to reduce the on-line voltage falls as much as possible, please respect the following points:
If
And
Then
The encoder is using a 5 VDC supply
The distance from the module to the TELEFAST is < 100m
Use a wire with minimum cross-section 0.08 mm (gage 28)
The distance from the module to the TELEFAST is > 100m
Use a wire with minimum cross-section 0.34 mm (gage 22)
Connecting the encoder supply

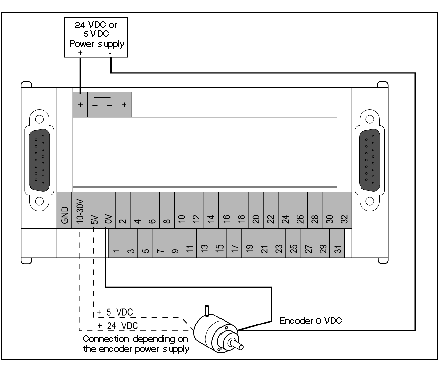

In order to limit voltage falls with a 0V, caused by the encoder supply current, we recommend that you wire the 0V as follows:
Wiring the encoder outputs on the TELEFAST
If the encoder outputs have positive or negative logic with a number lower than 24, use the following connection procedure:
If
And
Then
the encoder outputs have positive logic
their number is lower than 24

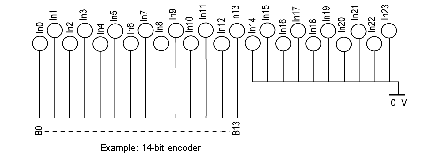

  • wire the encoder outputs to the TELEFAST inputs, working from the least significant to the most significant
  • wire the unused TELEFAST inputs to the 0V terminal
the encoder outputs have negative Logic
their number is lower than 24

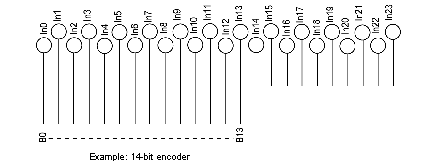

  • wire the encoder outputs to the TELEFAST inputs, working from the least significant to the most significant
  • do not wire (leave free) the unused TELEFAST inputs.
Protecting the encoder supply
According to the encoder supply voltage, the supply should be protected as follows:
If
Then
The encoder supply voltage is 10…30 VDC
The protective fuse is built into the TELEFAST:
  • size: 1A
  • type: fast-blow fusion.
The encoder supply voltage is 5 VDC

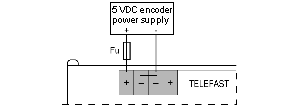

Provide a series fuse (Fu) for the positive supply:
  • calibre: to be determined by the user, dependent upon the TELEFAST and encoder consumption
  • type: fast-blow fusion
Monitoring the encoder supply
If the encoder supply voltage decreases by more than 15%, the default (EPSR signal) is sent back to the module. If the encoder does not have a return supply, do the following:
If
Then
No return encoder supply
Connect the positive and negative EPSR of the TELEFAST:
  • the positive EPSR terminal of the TELEFAST to the positive terminal of the encoder supply
  • the negative EPSR terminal of the TELEFAST to the negative terminal of the encoder supply
