The 15-pin SUB D connector, located on the front panel of the module, allows the connection of encoder and module using a TELEFAST ABE-7CPA11 connector.
The TELEFAST connector receives:
all parallel signals from the encoder,
the 5VDC or 10…30VDC encoder supply source.
The TELEFAST connector restores
signals for the module that have been encoded as RS 422 standard signals.
Illustration

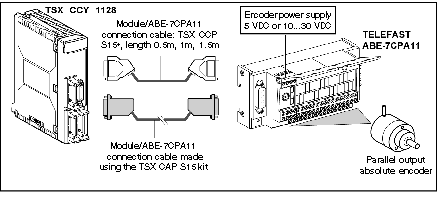

The diagram below shows the principle for connecting an absolute encoder with parallel outputs to a TSX CCY 1128 module.
