Principles for connecting an encoder to a TSX CCY 1128

Connection interfaces

The 15-pin SUB D connector, located on the front panel of the module, allows the connection of encoder and module. This connector carries:

all signals travelling to or from the encoder,
the encoder supply source, which is also connected:
- either by a TELEFAST ABE-7H16R20 cable interface.
- or directly, using a TSX CDP •01 prewired strand

The design of the module allows the encoder to be connected at either 5VDC or 10…30VDC.

Illustration

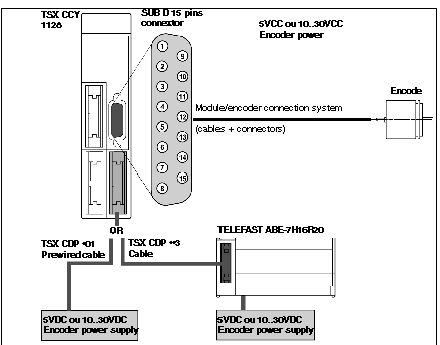

The diagram below shows the principles for connecting an encoder to a TSX CCY 1128 module.
