Connecting an Absolute SSI Encoder
(Original Document)
About us

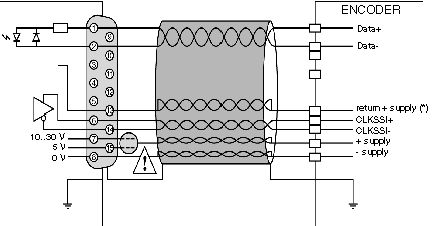

Connection Diagram
illustration:
WARNING
Connecting the encoder supply
Connect the encoder supply to pin 15 or 7 of the SUB-D connector, according to the encoder supply voltage.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
(*) + return supply: encoder output, which returns the supply voltage to the module, therefore allowing the module to monitor the presence of the encoder.
