The connection device enables the speed references of each variable speed controller to start again at the same time. This allows the simple connection of several variables, while maintaining good ground connection continuity.
Illustration of the connection device:

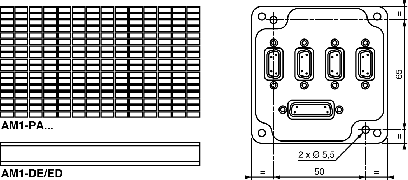

The TSX TAP MAS device is installed either on an AM1 PA… type perforated board or on a DIN rail with an LA9 D09976 fixation board with two M3x8 or M3x10 screws:
