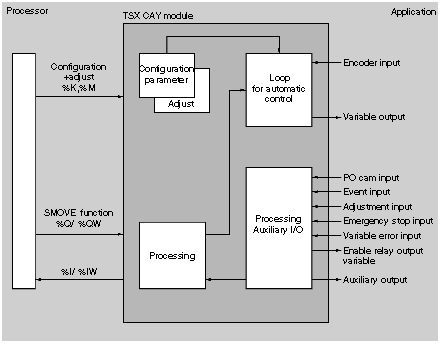

Process diagram:
Functions Provided by the Axis Command Modules
The axis command modules provide the following functions for each axis:
-
Inputs:
-
one input for the acquisition of position measurements:
RS 485 incremental encoder or 5 V totem pole, 16 to 25-data bit SSI serial absolute encoder,
-
one machine reference point input,
-
one event input,
-
one variable default input,
-
one recalibration input,
-
one emergency stop input.
-
Outputs:
-
one +/- 10 V, +sign 13-bit resolution analog output, for the speed controller command,
-
one relay output for validating the controller,
-
one auxiliary static output.
