This section provides two examples of Modbus Plus network layouts using communication adapters in a distributed I/O control application.
Note that only one programmable controller and the required I/O nodes are present in this kind of application.
The figure below illustrates a single cable configuration.

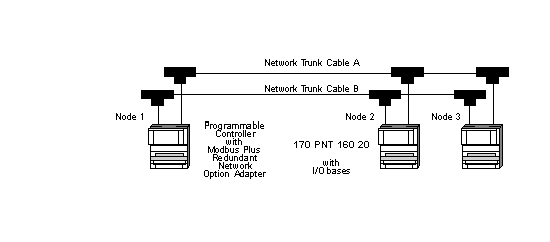

The example below illustrates a dual cable configuration.
