This section provides diagrams to assist you in wiring the following types of devices:
-
2-wire sensor with a 2-wire actuator
-
4-wire sensor with a 3-wire actuator
-
Wiring a 170 ADM 690 51 as a 170 ADM 690 50
2-Wire Sensor with a 2-Wire Actuator

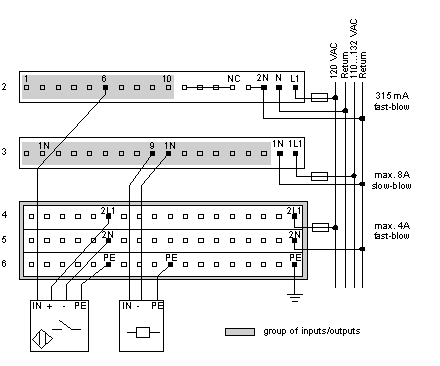

The diagram below shows field wiring for a 2-wire sensor and a 2-wire actuator.
4-Wire Sensor with a 3-Wire Actuator
The diagram below shows field wiring for a 4-wire sensor and a 3-wire actuator. When using 3-phase current for supply L1, 1L1 and 2L1 must come from one phase.

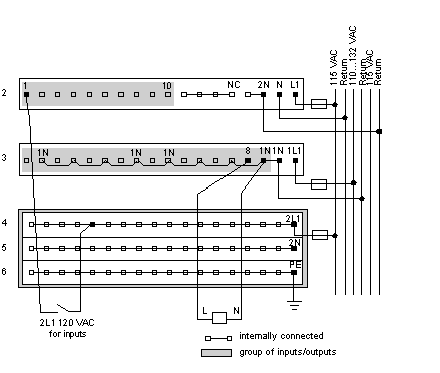

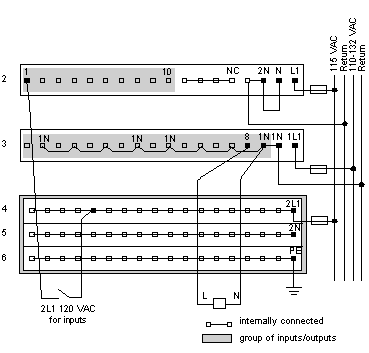

Wiring a 170 ADM 690 51 as a 170 ADM 690 50

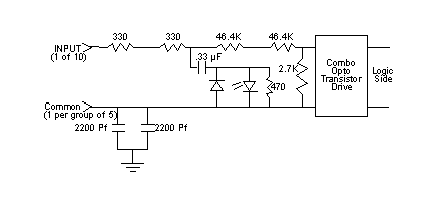

The following diagram shows the field-side input circuitry.
Simplified Input Schematics
The following diagram shows the field-side input circuitry.
Simplified Output Schematics

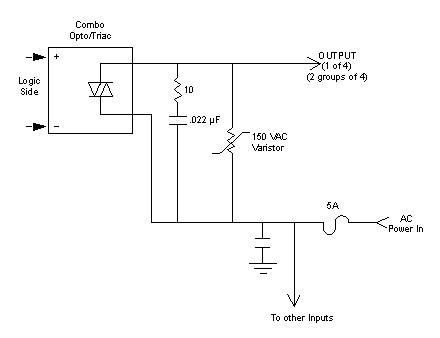

The following diagram shows the field-side output circuitry.
