I/O Mapping
Original instructions
Overview
The 170 ARM 370 30 TSX Momentum I/O base supports 10 discrete inputs and 8 relay outputs. This section contains information about the mapping of the I/O data into input words and output words.
I/O Map
The I/O base must be mapped as one input word and one output word, or as 10 discrete inputs and 8 discrete outputs.
IEC vs. Ladder Logic
In order to correctly field wire the inputs/outputs and map the input/output data, you need to know which type of Momentum Adapter is mounted on the base .
Adapters may be either IEC compliant or 984 Ladder Logic compliant.
IEC Compliant
984 Ladder Logic Compliant
Momentum Processor Adapters
All
None
Momentum Communication Adapters
All, except
170 NEF 110 21
170 NEF 160 21
170 FNT110 00
170 FNT 110 01
170 NEF 110 21
170 NEF 160 21
170 FNT 110 00
170 FNT 110 01
Data Mapping

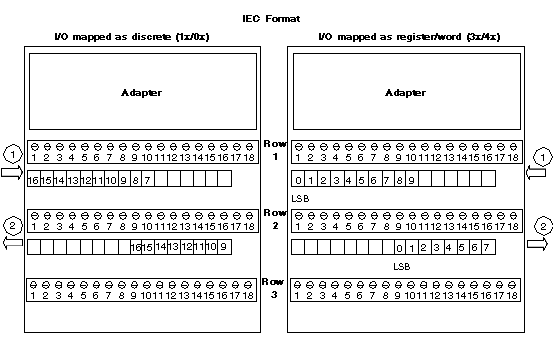

The figure below shows how data is mapped with an IEC Compliant Adapter. When the I/O is mapped as a discrete input point (1x) the MSB is assigned to Pin 1. When mapped as a discrete output (0x) the MSB is assigned to Pin 9. When the I/O is mapped as an input word/register (3x) the LSB is assigned to Pin 1.When mapped as an output word/register, the LSB is assigned to Pin 9.
1
inputs
2
outputs

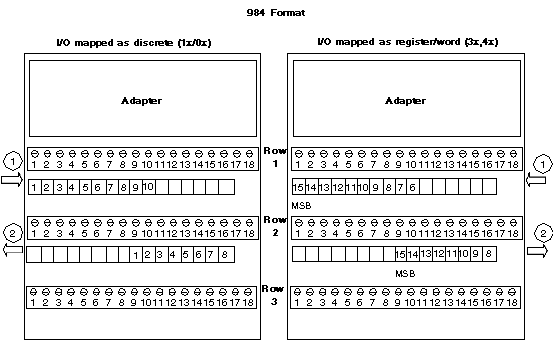

The figure below shows how data is mapped with a Ladder Logic Compliant Adapter. When the I/O is mapped as discrete input points (0x) the LSB is assigned to Pin 1. When mapped as a discrete output points, the LSB is assigned to Pin 9. When the I/O is mapped as an input word/register (3x) the MSB is assigned to Pin 1. When mapped as an output word/register (4x) , the MSB is assigned to Pin 9.
1
inputs
2
outputs
