Wiring Diagrams
Original instructions
Overview
This section contains diagrams to assist you in wiring the following types of devices:

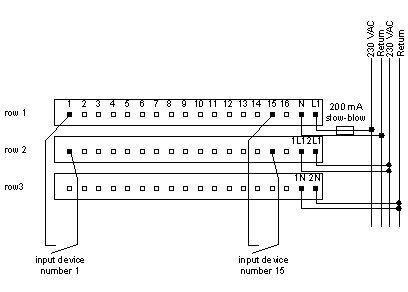

2-Wire Devices
The diagram below shows an example of wiring for 2-wire devices:

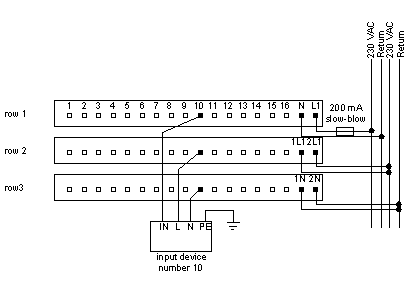

3-Wire Devices
The diagram below shows an example of wiring for 3-wire devices:
Simplified Schematics
The following diagram shows the field-side input circuitry.
