This section contains illustrations explaining the analog/digital relation for the various input and output measuring ranges.

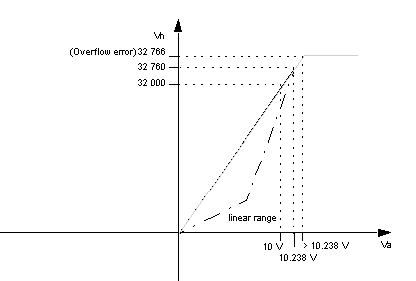

The following diagram shows the analog/digital relation for the input measuring range 0 - 10 V. The voltage value is calculated along the following formula using the digital measurand: Vn = 3200 x Va (for the linear range):

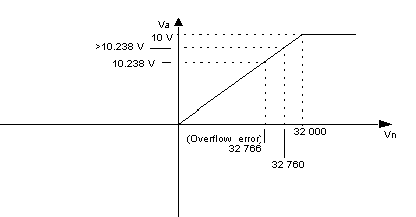

The following diagram shows the analog/digital relation for the output measuring range 0 -10 V. The voltage value is calculated along the following formula using the digital measurand: Vn = 3200 x Va (for the linear range):
