This section contains illustrations explaining the analog/digital relation for the voltage and current output ranges.

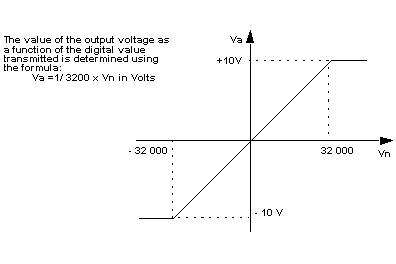

The following illustration shows the analog/digital relation for voltage:

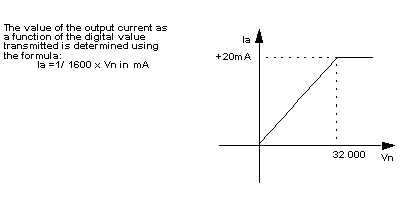

The following illustration shows the analog/digital relation for current:
