This section contains illustrations explaining the analog/digital relation for the various input measuring ranges.
If a RTD or thermocouple input range is chosen, the digital value transmitted is the temperature value expressed as either a tenth of a degree Centigrade or a tenth of a degree Fahrenheit, depending on the temperature unit chosen in the configuration.

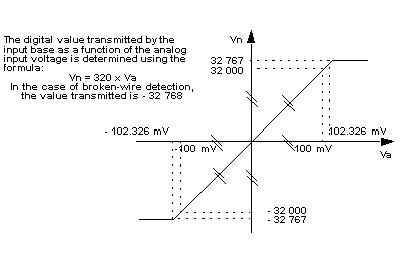

The following illustration shows the analog/digital relation at +/- 100 mV:

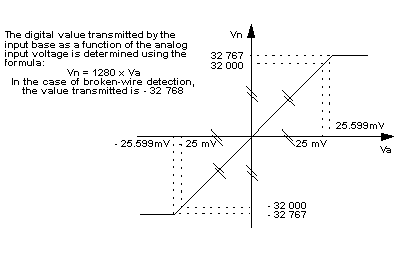

The following illustration shows the analog/digital relation at +/- 25 mV:
