I/O Mapping
Original instructions
Overview
The 170 ADM 390 30 TSX Momentum I/O base supports 10 discrete inputs and 8 discrete outputs. This section contains information about the mapping of the I/O data into input words and output words.
I/O Map
The I/O base may be mapped as one input word and one output word, or as 10 discrete input points and 8 discrete output points.
IEC vs. Ladder Logic
In order to correctly field wire the inputs/outputs and map the input/output data, you need to know which type of Momentum Adapter is mounted on the base.
Adapters may be either IEC compliant or 984 Ladder Logic compliant.
IEC Compliant
984 Ladder Logic Compliant
Momentum Processor Adapters
All
None
Momentum Communication Adapters
All, except
170 NEF 110 21
170 NEF 160 21
170 FNT 110 00
170 FNT 110 01
170 NEF 110 21
170 NEF 160 21
170 FNT 110 00
170 FNT 110 01
Data Mapping

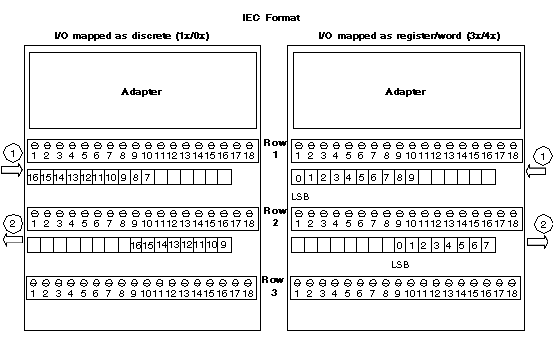

The figure below shows how data is mapped on the I/O base with an IEC Compliant adapter. When the I/O is mapped as discrete points (1x/0x), the MSB is assigned to Pin 1 and the LSB is assigned to Pin 16. When I/O is mapped as a word or register (3x/4x), the MSB (bit 15) is assigned to Pin 16 and LSB (bit 0) is assigned to Pin 1.
1
inputs
2
outputs

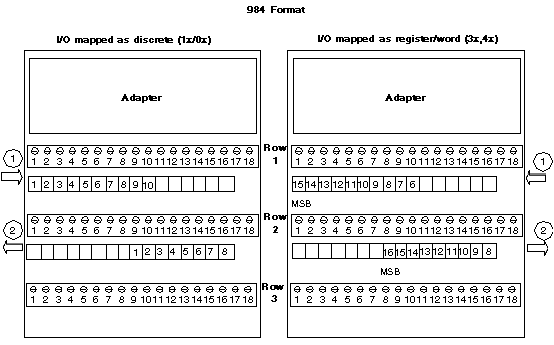

The figure below shows how data is mapped on the I/O base with a Ladder Logic Compliant adapter. When the I/O is mapped as discrete points (1x/0x), the MSB is assigned to Pin 16 and the LSB is assigned to Pin 1. When I/O is mapped as a word or register (3x/4x), the MSB (bit 15) is assigned to Pin 1 and LSB (bit 0) is assigned to Pin 16.
1
inputs
2
outputs
