Wiring Diagrams
Original instructions
Overview
This section provides diagrams to assist you in wiring the following types of devices:
2-Wire Devices

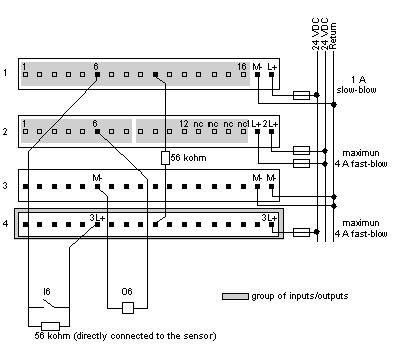

The diagram below shows an example of wiring for 2-wire devices. Use a 1-row busbar for this configuration.
3- and 4-Wire Devices

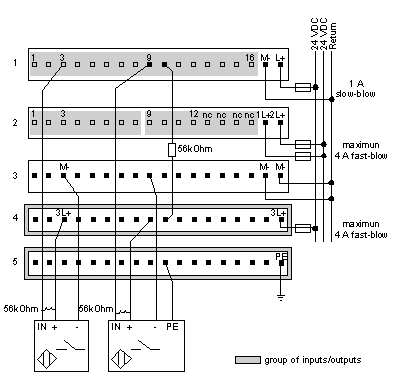

To connect a 3- or 4-wire sensor, you need a 2-row busbar.
Simplified Input Schematics

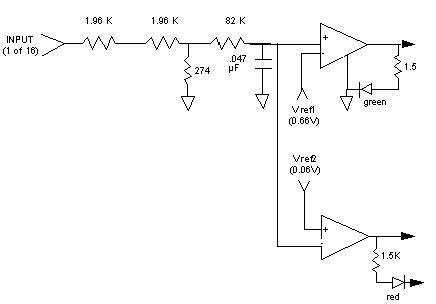

The following diagram shows the field-side input circuitry.
Simplified Output Schematics

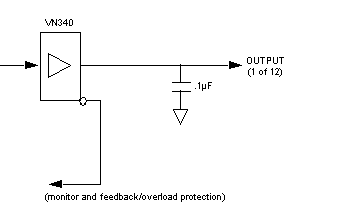

The following diagram shows the field-side output circuitry.
