This section provides diagrams to assist you in wiring the following types of devices:

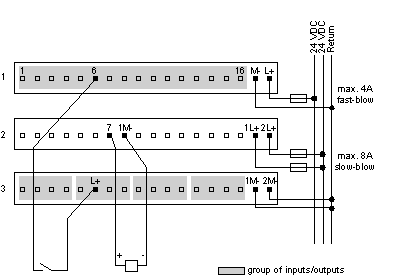

The diagram below shows an example of wiring for two-wire devices.
Sensor Activated by Output

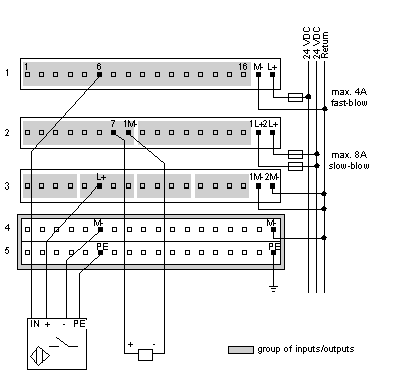

The wiring diagram below shows an example of a sensor activated by an output.
The diagram shows the sensors being supplied with voltage only when the corresponding output delivers a high signal. A similar wiring connection scheme can be used with 2- and 3-wire sensors.
Four-Wire Sensor with a Two-Wire Actuator

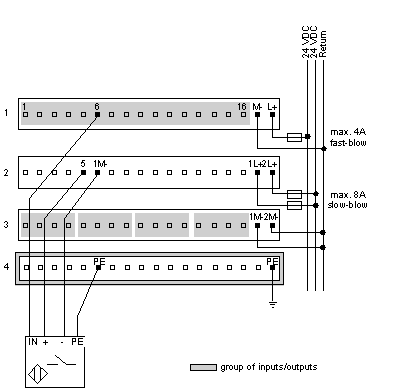

The diagram below shows a four-wire sensor with a two-wire actuator. The process of wiring a 3-wire sensor is very similar to the one below. Because 3-wire sensors do not require PE, a 1-row busbar could be used instead of the 2-row busbar shown.

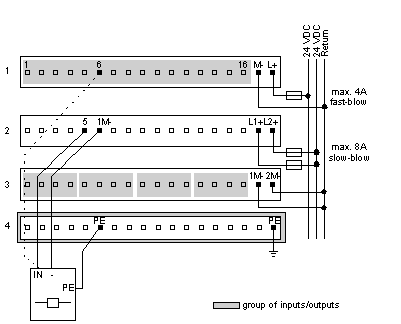

Separate connections to pins 17 and 18 are shown on row 3, even though these two pins are internally connected. This is done to halve the load.
The diagram below shows a three-wire actuator with an optional wiring scheme for broken wire detection. The dotted line reads back whether or not current has reached the actuator. When the output on pin 5, row 2, is high, the input from pin 6, row 1, must also be high.
Simplified Input Schematics

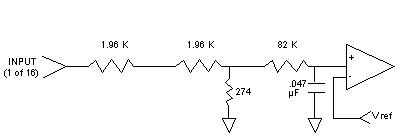

The following diagram shows the field-side input circuitry.
Simplified Output Schematics

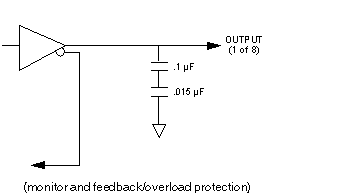

The following diagram shows the field-side output circuitry.
