This section contains a diagram to assist you in wiring the following types of devices:
-
2-wire configuration
-
3-wire configuration

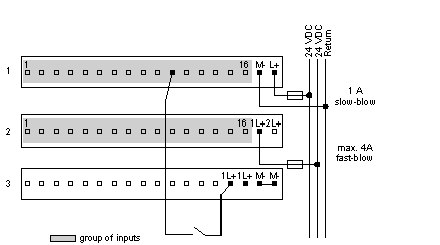

The diagram below shows an example of wiring for two-wire devices. This example uses an input from one group of input points. If you feed inputs using points from both input groups, you will need a busbar.

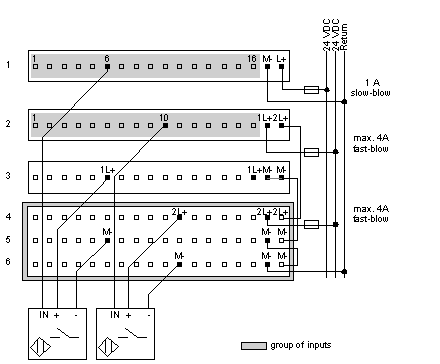

The diagram below shows an example of wiring for 3-wire devices:

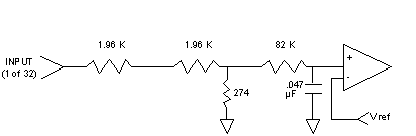

The following diagram shows the field-side input circuitry.
