Wiring Diagrams
Original instructions
About us
Overview
This section contains an illustration to assist you in wiring the following types of devices:
RTD 4-wire configuration
RTD 3-wire configuration
RTD 2-wire configuration
Thermocouple input
Diagram

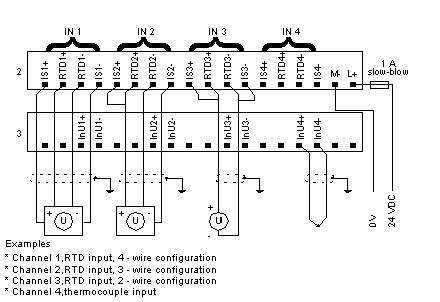

Examples of wiring are shown in the diagram below:
