Wiring Diagrams
Original instructions
About us
Overview
This section contains a diagram to assist you in wiring this I/O base for voltage input and current input.
Diagram

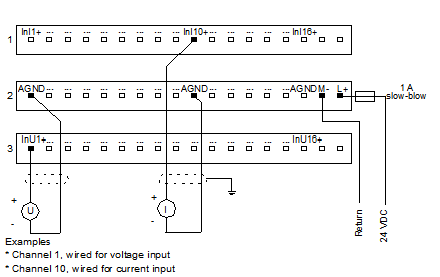

The diagram below shows an example of wiring for voltage input and for current input.
