Grounding DIN Rail Terminals and Cabinets
Original instructions
Overview
This section shows how to ground DIN rail terminals and cabinets.
Illustration

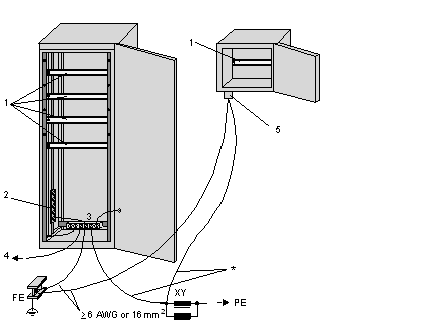

The following illustration shows how to ground DIN rail terminals and cabinets:
1
DIN rail for connecting the Momentum device and its accessories
2
reference conductor system or rail (solid copper or connected terminals)
3
grounding bar in the cabinet
4
next cabinet
5
grounding screw (PE/FE) in cabinet
FE
functional earth
PE
protective earth
XY
protective earth choke
*
conductor cross section depends on the load of the system
