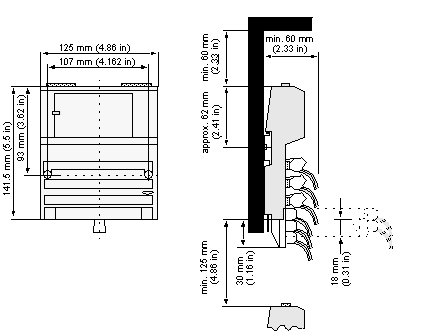

This section provides dimensions for a standard processor adapter or communications adapter mounted on a typical analog or VDC I/O base.
The wiring from the terminal connectors dictates the minimum depth (60 mm) of this assembly.
The figure on the right shows an additional 30 mm length dimension for an optional three-row busbar.
The following illustration shows dimensions for this assembly.
