Which Components Should I Use?
Original instructions
Overview
This topic explains the choices you have in assembling a Momentum I/O device.

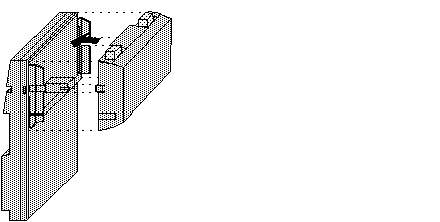

Primary Adapter
Each TSX Momentum I/O base must be assembled with a communication adapter or a processor adapter. Without one of these adapters, the I/O base will not function.

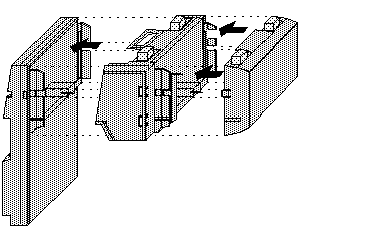

Option Adapter
If you use a processor adapter, you may add an option adapter. Option adapters cannot be used with communication adapters.
Terminal Connectors
Terminal connectors must be used to connect I/O devices to the I/O base.
Busbars
Busbars may be used to support 3- and 4-wire field devices. They are optional.
