Specifications
|
|
|
Original instructions
|
|
Specifications
|
|
|
Original instructions
|
|
Module type
|
16 discrete inputs in 2 groups
|
|
Supply voltage
|
120 VAC
|
|
Supply voltage range
|
85 ... 132 VAC RMS @ 47 ... 63 Hz
|
|
Supply current consumption
|
125 mA at 120 VAC
|
|
Power dissipation
|
4 W + ( # of input points on x .62 W)
|
|
I/O map
|
1 input word
|
|
Input to input
|
none
|
|
Group to Group
|
1780 VAC
|
|
Field to communication adapter
|
1780 VAC
|
|
Internal (non-replaceable
|
200 mA slow-blow
|
|
External (module power)
|
200 mA slow-blow
(Wickmann 19502000 mA or equivalent)
|
|
Immunity
|
IEC 1131-2
Surge on auxiliary power supply 2 kV
|
|
Emissions
|
EN 50081-2
|
|
Agency approvals
|
UL, CSA, CE
FM Class 1,Div. 2
|
|
Width
|
125 mm (4.9 in)
|
|
Depth (with no adapter)
|
52 mm (2.05 in)
|
|
Length
|
141.5 mm (5.5 in) no or one busbar
159.5mm (6.3in) two busbars
171.5 mm (6.75in) three busbars
|
|
Weight
|
284 g (10 oz)
|
|

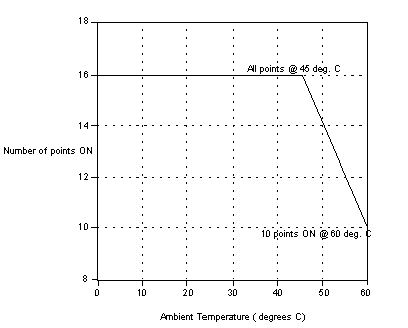

Number of points
|
16
|
|
Number of groups
|
2
|
|
Points per group
|
8
|
|
Signal type
|
True High
|
|
Input current
|
10 mA minimum ON
2 mA maximum OFF
|
|
Input resistance (nominal)
|
9.5 kOhm @ 50
7.5 kOhm @ 60
|
|
Switching level
|
74 VAC minimum ON
20 VAC minimum OFF
|
|
Response time
|
35 ms @ 60 Hz ON to OFF
10 ms @ 60 Hz OFF to ONF
|
