Analog Inputs
Original instructions
About us
Overview
This section describes how to interpret the value of the analog input channels.
Key
This section describes input words 1 ... 4, as highlighted in the table below:
Word
Input Data
Output Data
1 = LSW
Value, input channel 1
Parameters for input channels 1 ... 4
2
Value, input channel 2
Parameters for output channels 1, 2
3
Value, input channel 3
Value, output channel 1
4
Value, input channel 4
Value, output channel 2
5 = MSW
Discrete inputs
Discrete outputs
Analog Input Values

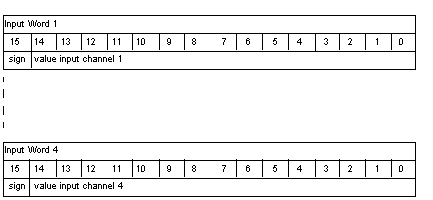

Mapping of analog input values is shown below.
Resolution
The resolution of the module is 12-, 13- or 14-bit, depending on the range.
