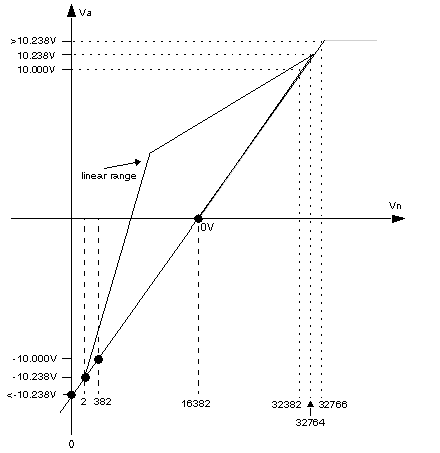

Ranges and Decimal Values Input Measuring Range ±10 V
The voltage value is calculated with the following formula using the digital measurand: Vn = 1600 Va + 16382 (for the linear range).

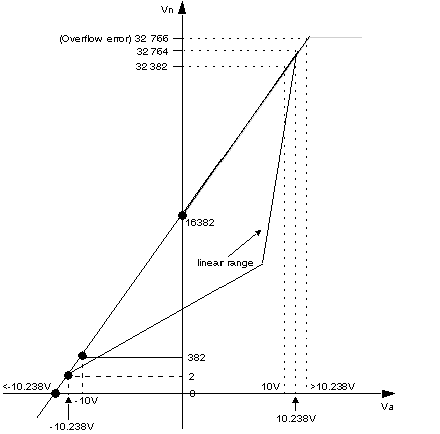

Output Measuring Range ±10 V
The voltage value is calculated with the following formula using the digital measurand: Vn = 1600 Va + 16382 (for the linear range).
