Analog Map
Original instructions
About us
Overview

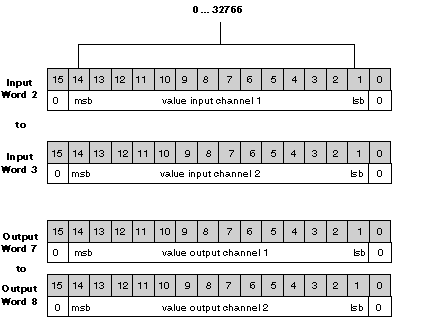

170AMM11030 analog values are mapped as follows.
NOTE:
The display is standardized, and, in each case, the analog value will appear left justified.
NOTE:
The module resolution is 14-bit (0 ... 32766 decimal or 0 ... 7FFE hex).
