This section contains diagrams to assist you in wiring the following types of devices.

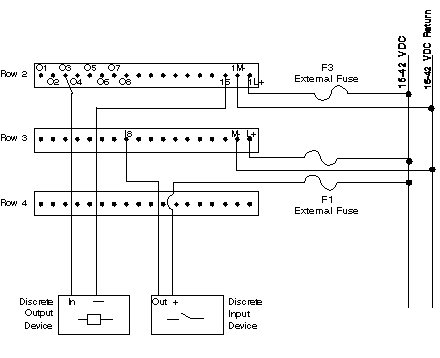

The diagram below shows field wiring for discrete input and discrete output devices.
Recommended fuses:
-
F1, F3: Use a 1A fuse, Wickman 19181-1A or equivalent.
-
F2: Use a 2.5A fuse, Wickman 19181-2.5A or equivalent.

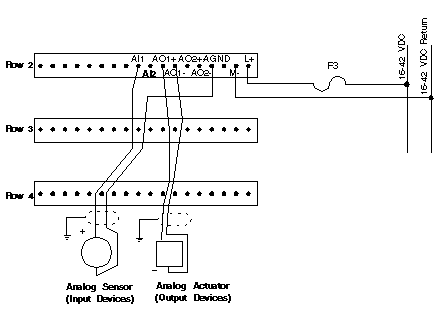

The diagram below shows field wiring for analog input and analog output devices.
Recommended fuses:
