This section contains an illustration showing the internal connections between terminals on the I/O base and an optional busbar.

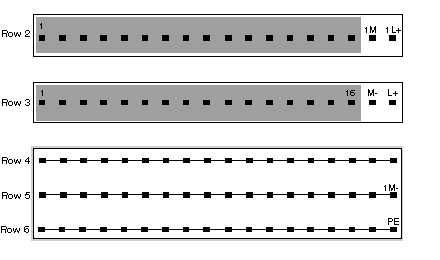

The following illustration shows the internal connections between terminals.
NOTE: AGND and DGND are connected at a single point inside the module. External digital inputs must be returned to the DGND terminal. External analog circuits must be returned to AGND terminals.
