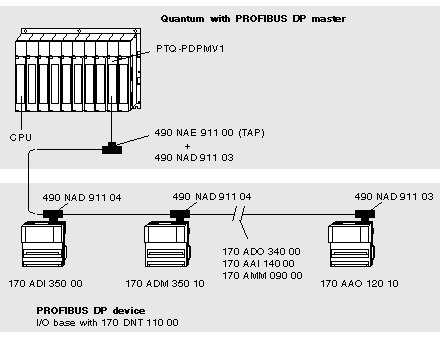

The following example shows the use of Momentum I/O modules with the PROFIBUS DP.
NOTE: A PROFIBUS terminating connector (e.g. 490 NAD 911 03) must always be used at the front and back ends of the bus.
Detailed information about PROFIBUS DP standards can be found on the PROFIBUS website (www.profibus.com).
Further details about topology and configurations are contained in the manuals for the relevant PROFIBUS DP masters.
