Example for the QPWM block
Original instructions
About us
Jump response
In the example, the signal sequences on the outputs Y_POS and Y_NEG are shown for various X input signal values.
The following parameter specifications apply to the jump response display:
Parameters
Specification
t_period
4 s
t_min
0.5 s
x_max
10

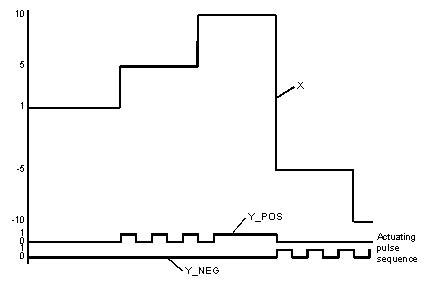

Jump response timing diagram
X
Analog signal
It is noticeable that pulses are no longer output for very small X input signals. This is directly attributable to the effect of time t_min. A continuous pulse is output for large X (X = x_max) signals.
