Overview
The following diagrams show examples of the LAG2 device’s jump response with varying parameters.

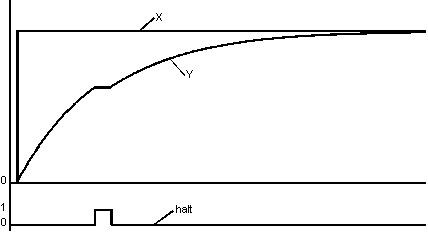

Dampening dmp = 1
For a dampening of dmp = 1 the output Y follows input X with a non-periodic action.

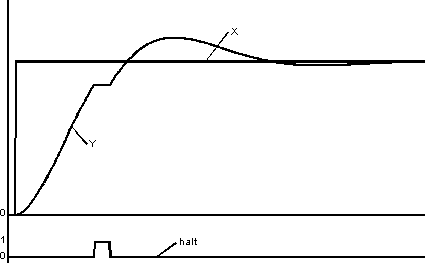

Dampening dmp = 0.5
For a dampening of dmp = 0.5 the output Y follows input X with a dampened periodic action.

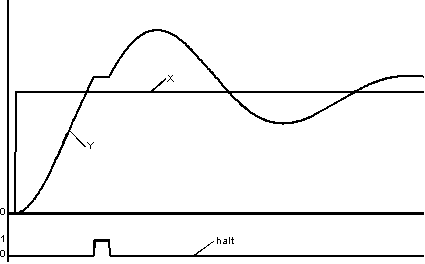

Dampening dmp = 0.2
For a dampening of dmp = 0.2 it is clear that the jump response is considerably less dampened.
