Timing diagrams
Original instructions
About us

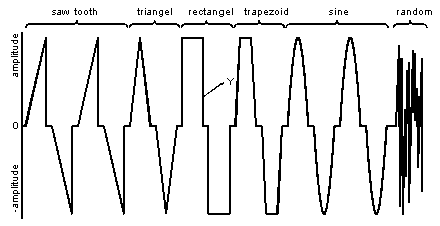

Bipolar operation
The following parameter specifications represent the various functions in bipolar operation:
Parameter
Specification
amplitude
1
halfperiod
10
t_off
2
t_rise
2
t_acc
0
unipolar
0
Bipolar operation

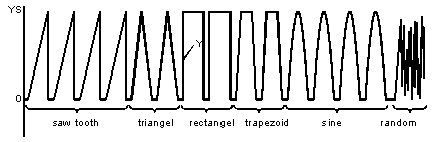

Unipolar operation
The following parameter specifications represent the various functions in unipolar operation:
Parameter
Specification
amplitude
1
halfperiod
10
t_off
2
t_rise
2
t_acc
0
unipolar
1
Unipolar operation
Trapezoid function
The following parameter specification represents the trapezoid function:
Parameter
Specification
amplitude
1
halfperiod
10
t_off
1
t_rise
4
t_acc
1.5
Trapezoid function
